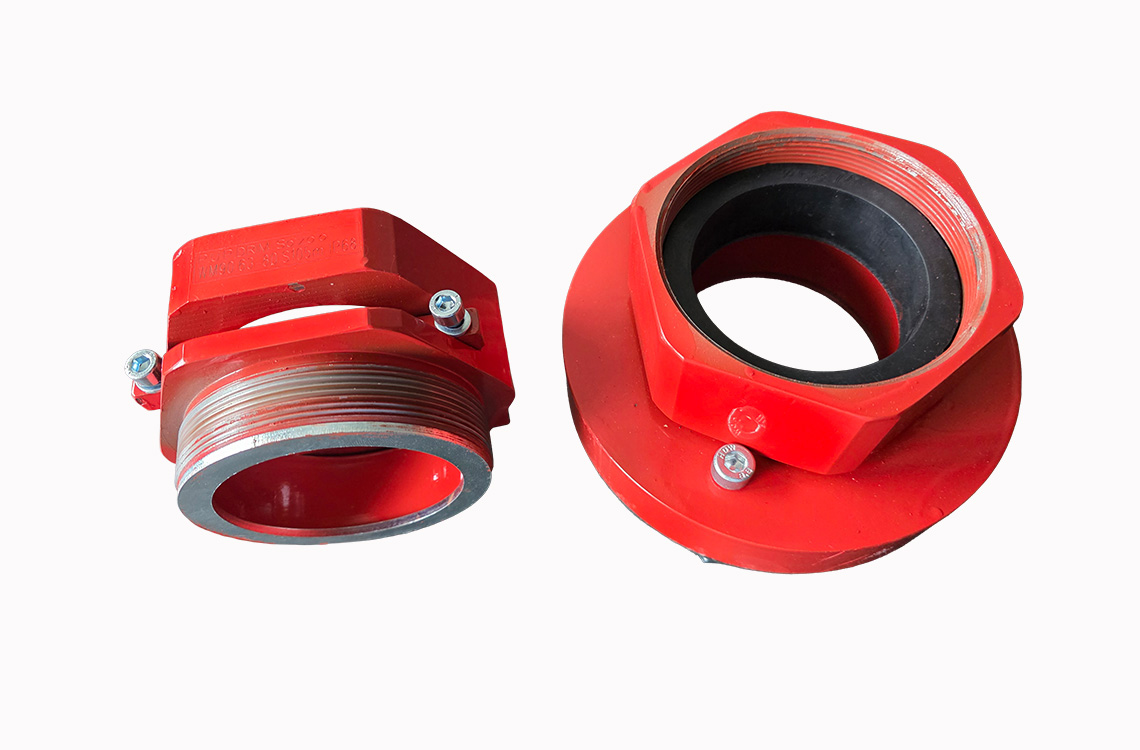

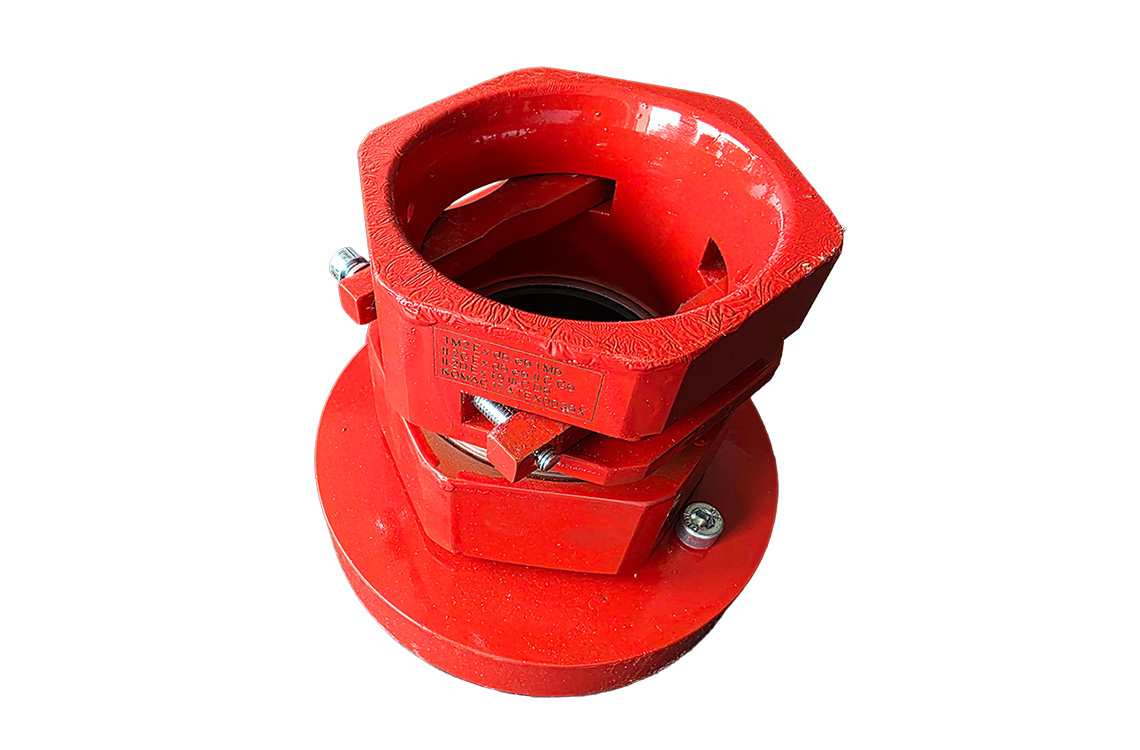

WM with flange

Back

Cable Glands

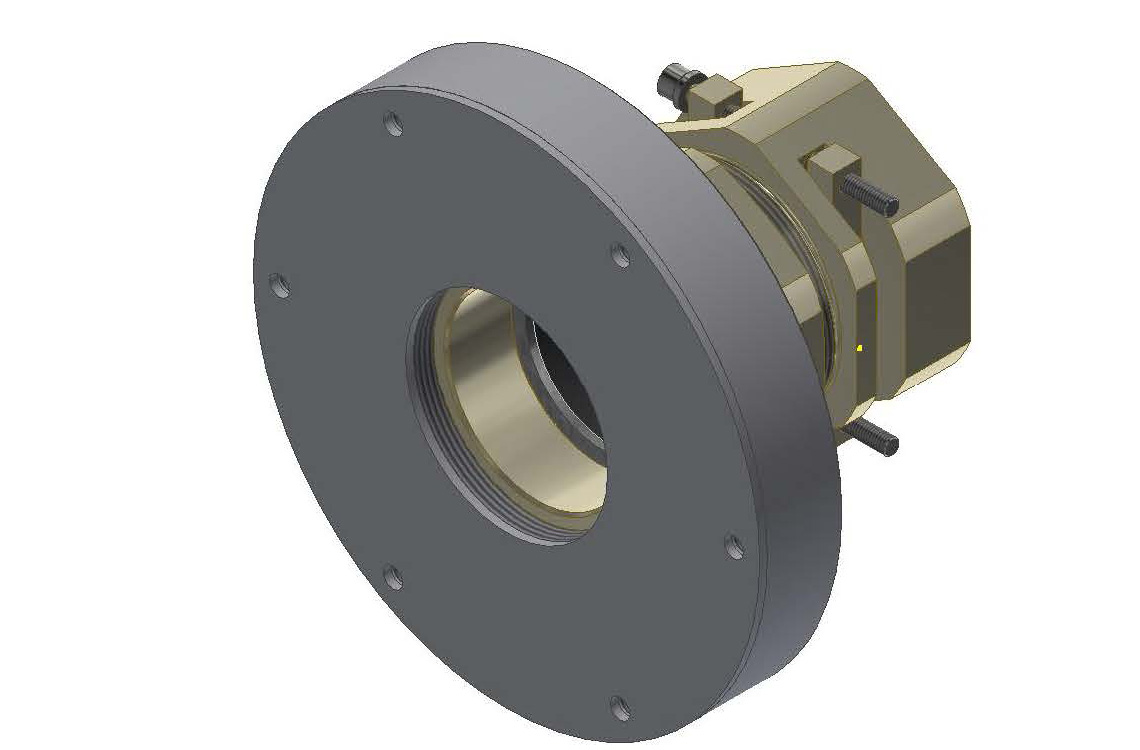

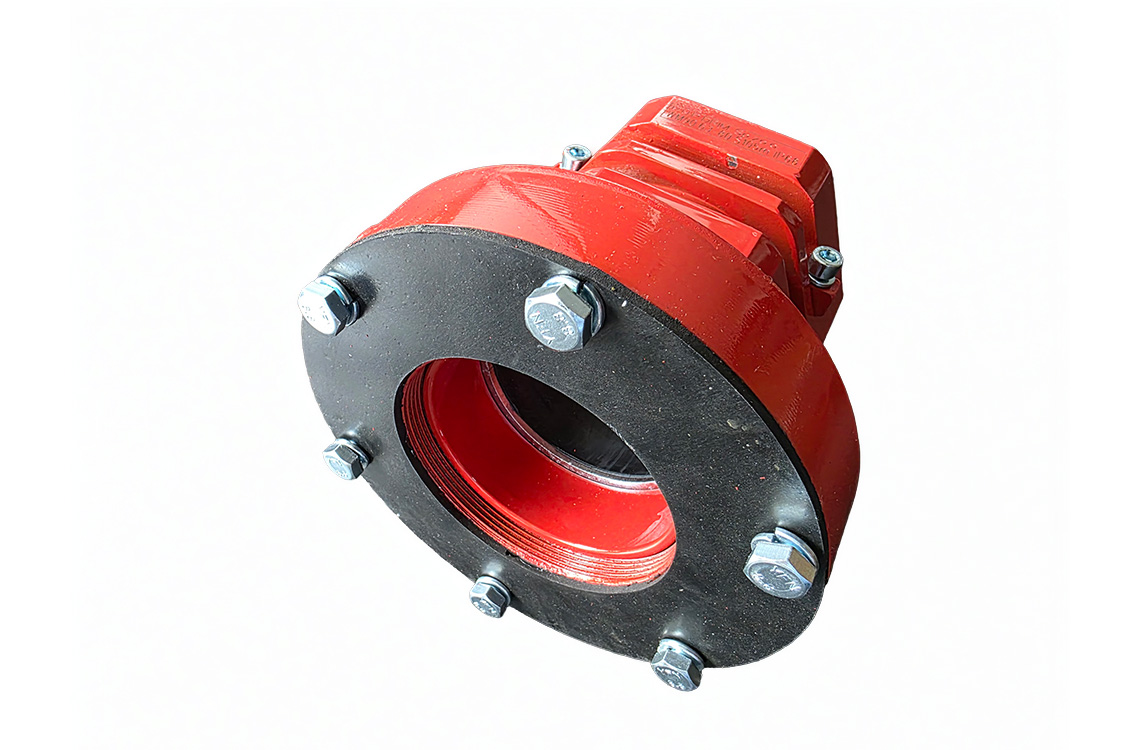

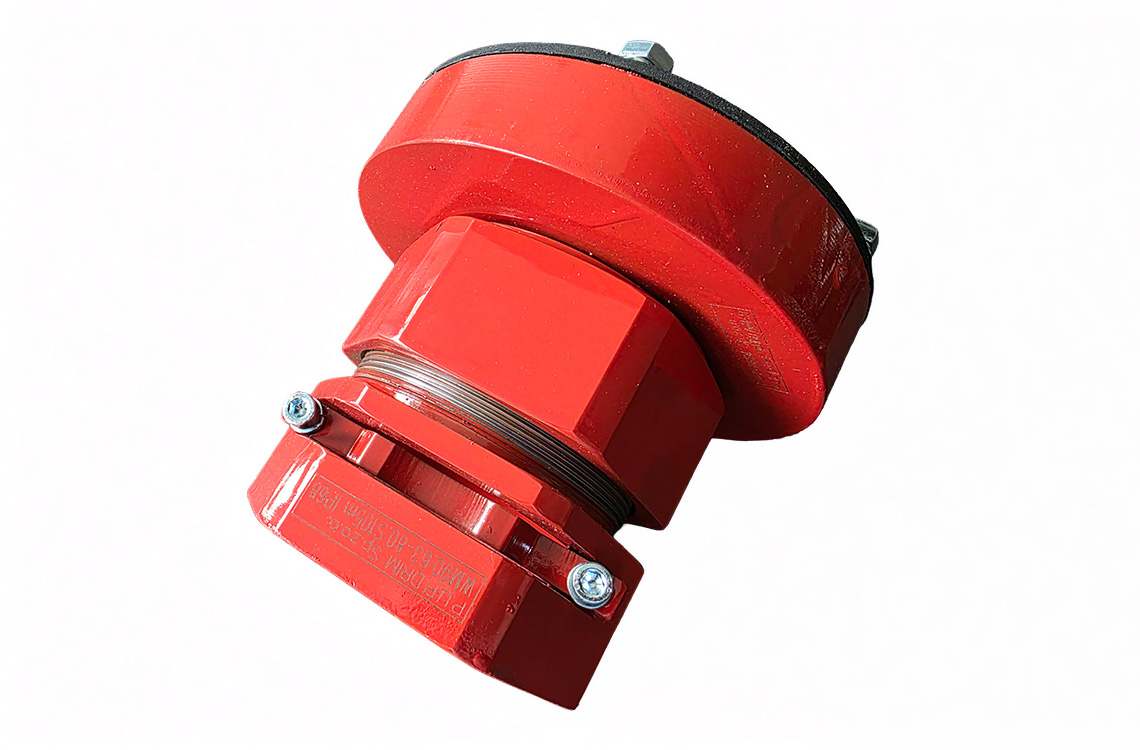

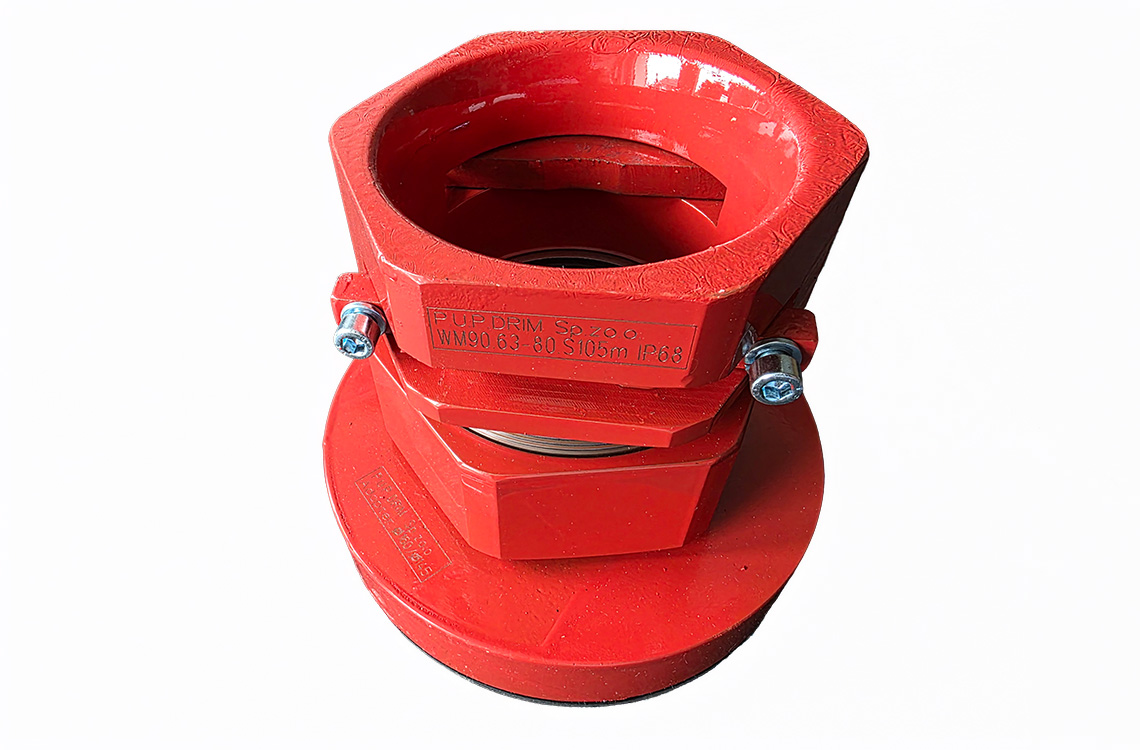

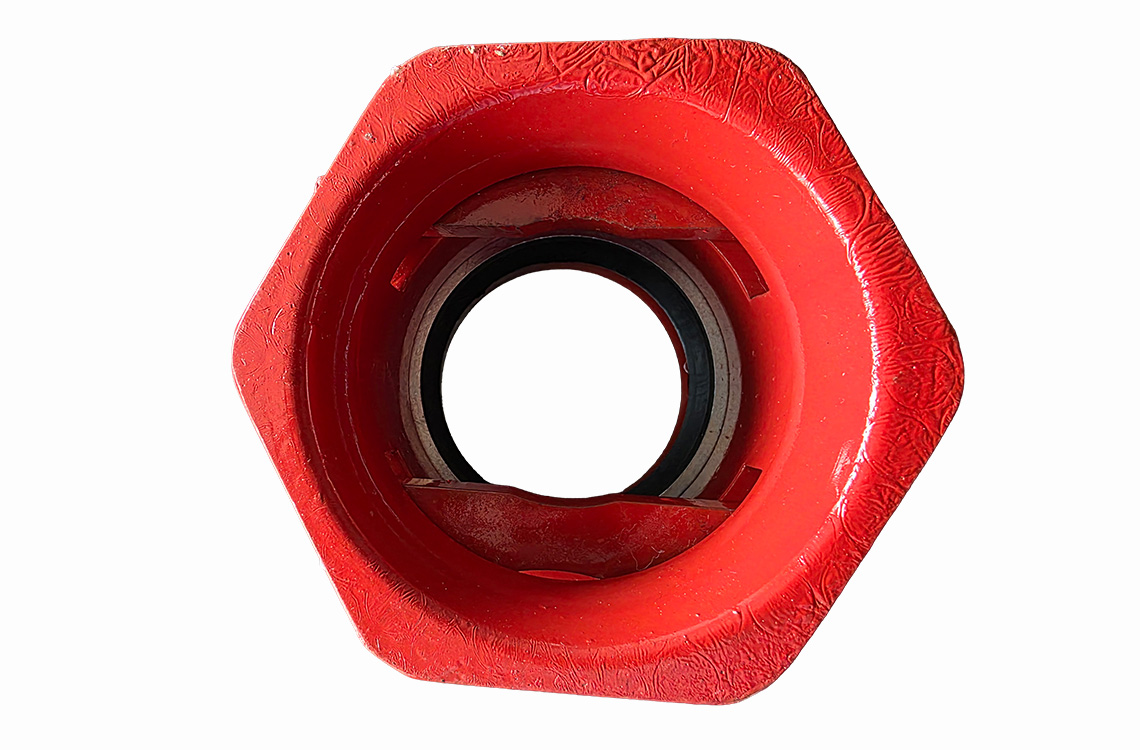

WM with flange, clamp and O-ring

Application:	Ex installations above and below earth, equipment group I & II
Design:	robust, with flange and heavy strain-relief clamp
Design flange:	with 6 mounting holes and O-ring
Sizes:	6
Cable sealing range:	ø 39 – 100 mm
Protection class:	IP 66
Ambient temperature:	-50 °C to +90 °C
Operating temperature:	-50 °C to +125 °C
Material cable gland:	cast steel
Material sealing:	CMP
Surface treatment:	spezial painting
Humidity:	100% with 35°C
Corrosion resistance:	CI-5 (PN-EN ISO 12944-2)
Explosion protection:	I M2 Ex eb I Mb II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
Certificates:	KOMAG 25ATEX0206X
Standards:	PN-EN IEC 60079-0:2018, equivalent to IEC 60079-0:2017 PN-EN 60079-7:2016, equivalent to IEC 60079-1:2015 PN-EN 60079-31:2014, equivalent to IEC 60079-31:2014
Article numbers with a “*”:	pending resp. in development

Inquiry

Call back

Back

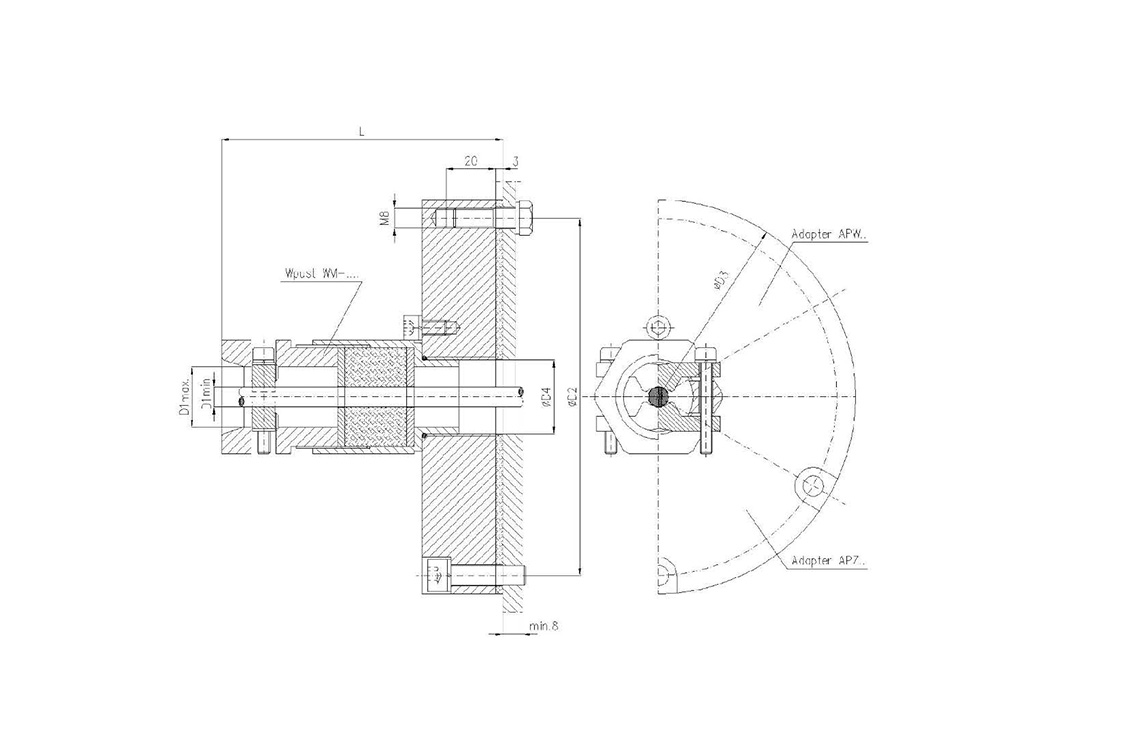

Cable Gland Executions

WM with flange and strain-relief made from cast steel (standard)

Article Number	Sealing Range Outer Cable [mm]	ø Sealing Insert Inner [mm]	ø Sealing Insert Outer [mm]	ø Mounting Screws Flange [mm]	ø Dimensions Flange [mm]	ø Inner Thread Cable Entry System [mm]	Heigth Flange [mm]	PU
apWM60.39-42.S65m_APW1	39 – 42	39	42	145	160	58,5	134	lose
apWM60.41-44.S65m_APW1	41 – 44	41	44	145	160	58,5	134	lose
apWM60.43-46.S65m_APW1	43 – 46	43	46	145	160	58,5	134	lose
apWM60.45-48.S65m_APW1	45 – 48	45	48	145	160	58,5	134	lose
apWM60.39-42.S65m_APZ1	39 – 42	39	42	145	160	58,5	134	lose
apWM60.41-44.S65m_APZ1	41 – 44	41	44	145	160	58,5	134	lose
apWM60.43-46.S65m_APZ1	43 – 46	43	46	145	160	58,5	134	lose
apWM60.45-48.S65m_APZ1	45 – 48	45	48	145	160	58,5	134	lose
apWM75.47-50.S90m_APW1	47 – 50	47	50	145	160	73	134	lose
apWM75.49-53.S90m_APW1	49 – 53	49	53	145	160	73	134	lose
apWM75.53-57.S90m_APW1	53 – 57	53	57	145	160	73	134	lose
apWM75.57-61.S90m_APW1	57 – 61	57	61	145	160	73	134	lose
apWM75.47-50.S90m_APZ1	47 – 50	47	50	145	160	73	134	lose
apWM75.49-53.S90m_APZ1	49 – 53	49	53	145	160	73	134	lose
apWM75.53-57.S90m_APZ1	53 – 57	53	57	145	160	73	134	lose
apWM75.57-61.S90m_APZ1	57 – 61	57	61	145	160	73	134	lose
apWM80.51-56.S90m_APW1	51 – 56	51	56	145	160	78	134	lose
apWM80.54-59.S90m_APW1	54 – 59	54	59	145	160	78	134	lose
apWM80.57-62.S90m_APW1	57 – 62	57	62	145	160	78	134	lose
apWM80.60-65.S90m_APW1	60 – 65	60	65	145	160	78	134	lose
apWM80.63-68.S90m_APW1	63 – 68	63	68	145	160	78	134	lose
apWM80.51-56.90m_APZ1	51 – 56	51	56	145	160	78	134	lose
apWM80.54-59.90m_APZ1	54 – 59	54	59	145	160	78	134	lose
apWM80.57-62.90m_APZ1	57 – 62	57	62	145	160	78	134	lose
apWM80.60-65.90m_APZ1	60 – 65	60	65	145	160	78	134	lose
apWM80.63-68.90m_APZ1	63 – 68	63	68	145	160	78	134	lose
apWM80.51-56.S90m_APW2	51 – 56	51	56	175	195	78	134	lose
apWM80.54-59.S90m_APW2	54 – 59	54	59	175	195	78	134	lose
apWM80.57-62.S90m_APW2	57 – 62	57	62	175	195	78	134	lose
apWM80.60-65.S90m_APW2	60 – 65	60	65	175	195	78	134	lose
apWM80.63-68.S90m_APW2	63 – 68	63	68	175	195	78	134	lose
apWM80.51-56.S90m_APZ2	51 – 56	51	56	175	195	78	134	lose
apWM80.54-59.S90m_APZ2	54 – 59	54	59	175	195	78	134	lose
apWM80.57-62.S90m_APZ2	57 – 62	57	62	175	195	78	134	lose
apWM80.60-65.S90m_APZ2	60 – 65	60	65	175	195	78	134	lose
apWM80.63-68.S90m_APZ2	63 – 68	63	68	175	195	78	134	lose
apWM90.63-68.S105m_APW1	63 – 68	63	68	145	160	93	134	lose
apWM90.68-74.S105m_APW1	68 – 74	68	74	145	160	93	134	lose
apWM90.74-80.S105m_APW1	74 – 80	74	80	145	160	93	134	lose
apWM90.63-68.S105m_APZ1	63 – 68	63	68	145	160	93	134	lose
apWM90.68-74.S105m_APZ1	68 – 74	68	74	145	160	93	134	lose
apWM90.74-80.S105m_APZ1	74 – 80	74	80	145	160	93	134	lose
apWM90.63-68.S105m_APW2	63 – 68	63	68	175	195	93	134	lose
apWM90.68-74.S105m_APW2	68 – 74	68	74	175	195	93	134	lose
apWM90.74-80.S105m_APW2	74 – 80	74	80	175	195	93	134	lose
apWM90.63-68.S105m_APZ2	63 – 68	63	68	175	195	93	134	lose
apWM90.68-74.S105m_APZ2	68 – 74	68	74	175	195	93	134	lose
apWM90.74-80.S105m_APZ2	74 – 80	74	80	175	195	93	134	lose
apWM100.68-74.S110m_APW2	68 – 74	68	74	175	195	98	136	lose
apWM100.74-80.S110m_APW2	74 – 80	74	80	175	195	98	136	lose
apWM100.80-86.S110m_APW2	80 – 86	80	86	175	195	98	136	lose
apWM100.68-74.S110m_APZ2	68 – 74	68	74	175	195	98	136	lose
apWM100.74-80.S110m_APZ2	74 – 80	74	80	175	195	98	136	lose
apWM100.80-86.S110m_APZ2	80 – 86	80	86	175	195	98	136	lose
apWM120.74-80.S130m_APW2*	74 – 80	74	80	175	195	118	136	lose
apWM120.80-86.S130m_APW2*	80 – 86	80	86	175	195	118	136	lose
apWM120.85-91.S130m_APW2*	85 – 91	85	91	175	195	118	136	lose
apWM120.90-96.S130m_APW2*	90 – 96	90	96	175	195	118	136	lose
apWM120.95-100.S130m_APW2*	95 – 100	95	100	175	195	118	136	lose
apWM120.74-80.S130m_APZ2*	74 – 80	74	80	175	195	118	136	lose
apWM120.80-86.S130m_APZ2*	80 – 86	80	86	175	195	118	136	lose
apWM120.85-91.S130m_APZ2*	85 – 91	85	91	175	195	118	136	lose
apWM120.90-96.S130m_APZ2*	90 – 96	90	96	175	195	118	136	lose
apWM120.95-100.S130m_APZ2*	95 – 100	95	100	175	195	118	136	lose
