QDP LV-Switchgear
LV-Switchgear

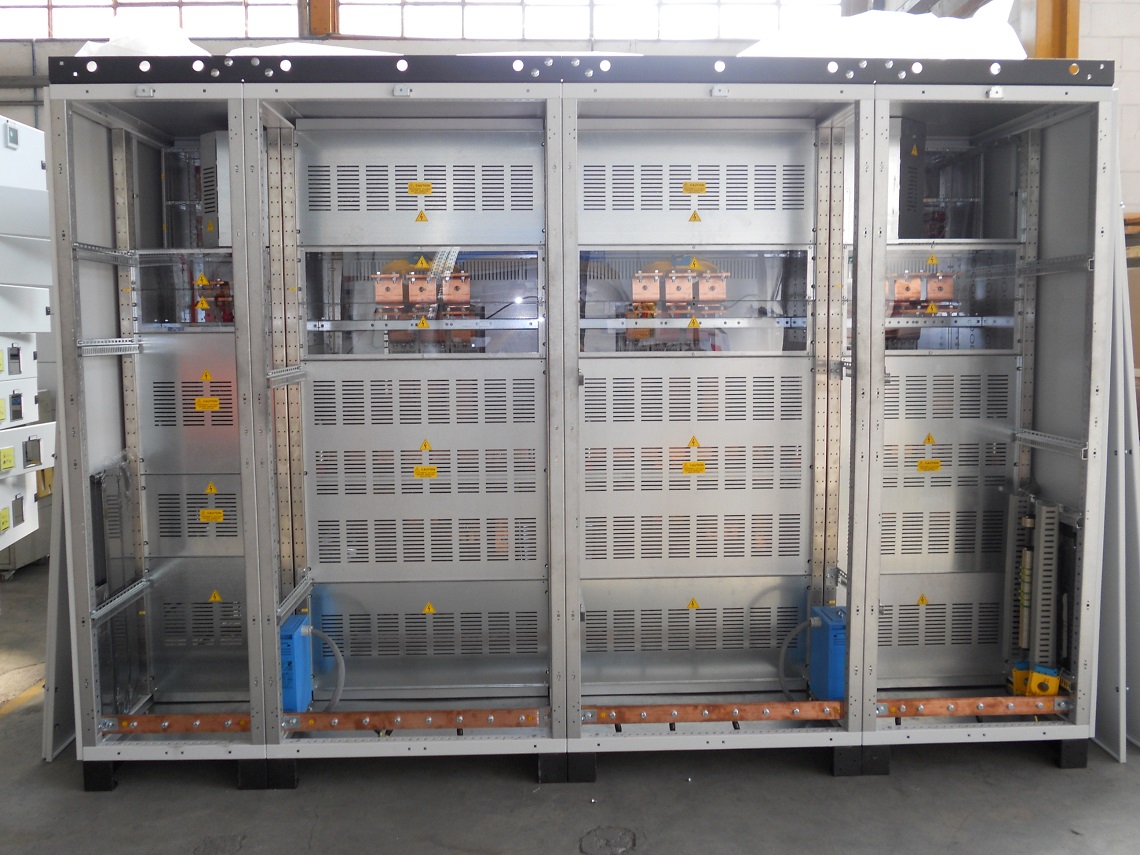

QDP Power Center Low Voltage Switchgear
| Application: | indoor, in fixed mounted design |
| Rated voltage: | up to 1000 Vca, up to 1500 Vcc |
| Rated impulse voltage: | 8 kV |
| Rated current: | up to 6300 A |
| Rated short circuit current: | 100 kA |
| Rated short-time withstand current: | 100 kA |
| Rated peak withstand current: | 220 kA |
| Frequency: | 50 – 60 Hz |
| Protection class: | IP 30 – IP 54, IP 20 with open door |
| Ambient temperature: | -5 °C up to +40 °C |
| Rated humidity: | 90% |
| Dimensions width: | 400/500/625/800/1000/1200/1400 mm |
| Dimensions height: | 2000/2200/2400 mm |
| Dimensions depth: | 500/625/800/1000/1200/1400/1550 mm |
| International certificates: | IEC EN 61439-1, IEC EN 61439-2 |
| Arc lightning test: | approved with 100 kA |
Characteristics
- modular construction
- cubicles in fixed mounted design
- easy access for quick maintenance work
- sophisticated design enables minimal dimensions
- metal clad, air insulated and type tested
- compartmentalization is made between the cubicles as well as between busbar-, circuit breaker and cable compartment sections
- busbar system and power connections compartment
=>nominal capacity: 630 A, 800 A, 1000 A, 1250 A, 1600 A, 1800 A, 2000 A, 2500 A, 2900 A, 3200 A, 3600 A, 4300 A, 4600 A, 5600 A, 6300 A
=> option: complete insulation with thermoplastic material
=> option: silver-plated busbars and terminals - power cable connection compartment
- switches, instrumental and auxiliary compartment
=> installation in the front part of the switchgear, separation by metal sheet
=> instruments and auxiliary units installed on the front panel
=> switchgear up to IP 55, protected by a wing door
=> option: removable or withdrawable breakers
