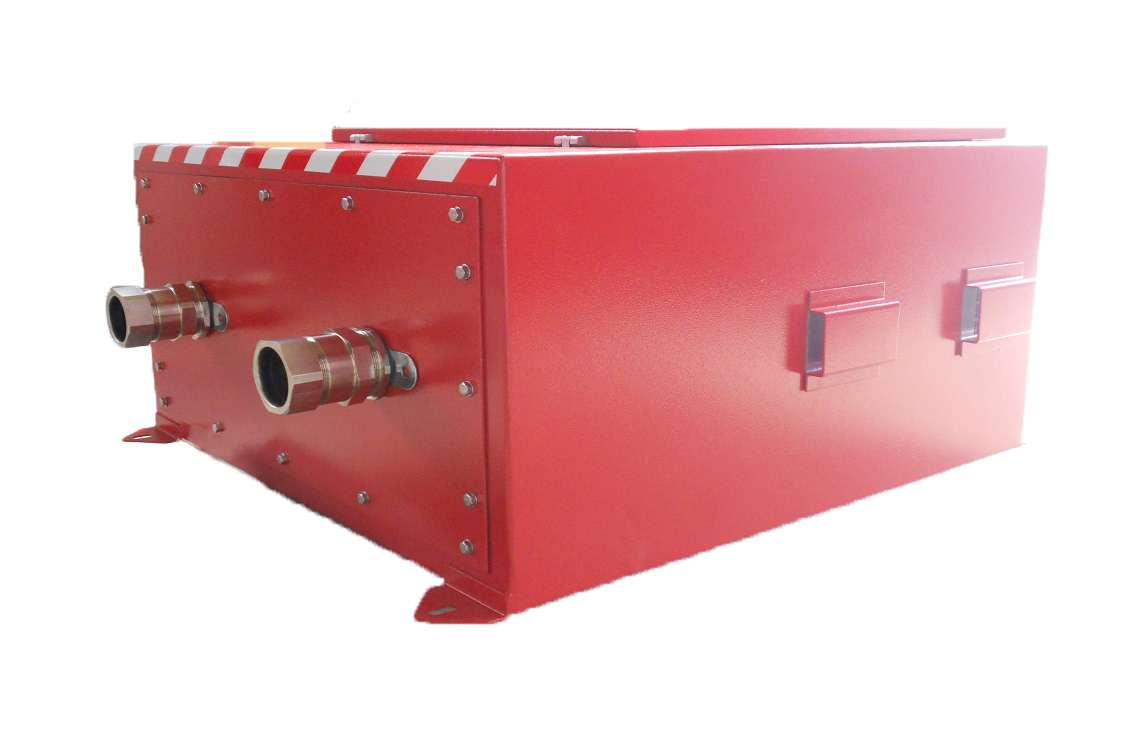

12 kV Junction box, 1 IN / 2 OUT
MV-Junction boxes
12 kV junction box, 1 In / 2 Out
| Article number: | CJ1206STxx3OHLxxxx2O |
| Design: | 1 IN / 2 OUT, MV terminals, cable entry from left and right |
| Rated voltage: | 12 kV 3 AC |
| Withstand voltage: | 28 kV 3 AC at 50 Hz (1 min) |
| Rated impulse voltage: | 75 kV 3 AC |
| Rated current: | 630 A |
| Frequency: | 50 – 60 Hz |
| Protection class: | IP 55, (IP 65) |
| Ambient temperature: | -5 °C up to +45 °C (-20°C up to +50°C) |
| Material: | sheet steel, AISI 304, AISI 316L, AISI 316Ti |
| Material sealing: | EPDM, (silicone) |
| Wall thickness: | 3 mm |
| Cover: | with hinges and lock |
| Surface treatment: | powder coated, RAL 3020 (red) |
| Dimensions (W/H/D): | 600 x 800 x 300 mm |
| Side box: | on request |
| Heater: | on request |
| 3-phase-HV-indicator: | on request |
| Certificates: | IEC 62271-200, CEI 17-6, CEI EN 62271-200 |
